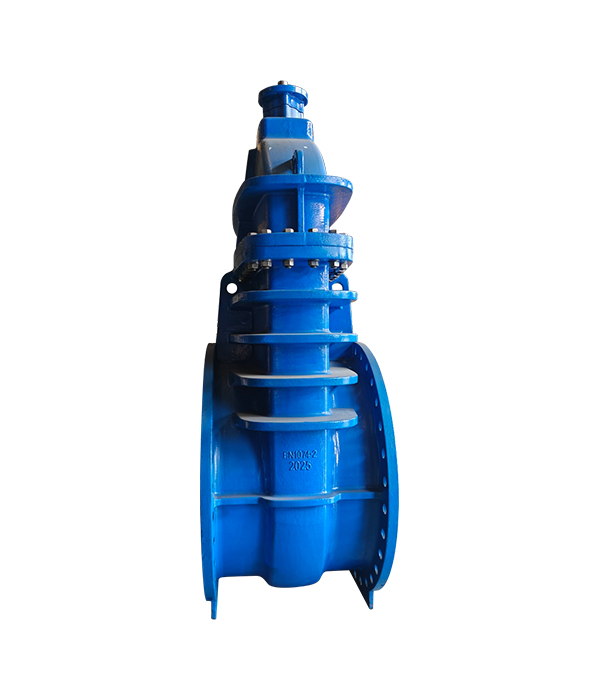

BS Big Size NRS Metal Seated Gate Valve

Product code:

Product Information


  • Size Range: DN700-DN1200

  • Pressure: PN10, PN16

  • Temperature Range: -10 to 120℃

  • Face to Face: BS5163

  • Flange Standard: EN1092-2 PN10/PN16

  • Main Parts:

        Body/Bonnet: Ductile iron

        Stem Nut: Brass

        Stem: Stainless steel

        Sealing: Metal

        Fasteners: Galvanized carbon steel


Performance Characteristics

● The product has a reverse sealing design, which allows to replace sealing rings under pressure.


● Product has got EN1074-1/2  and Hong Kong certification.


● Excellent product appearance design, low torque.


● The product can choose from multiple operations, such as gearbox,electric actuator,pneumatic actuator and optional position indicator,etc.


● Can be installed vertically or horizontally.


● Body and wedge seats are embeded design to reduce leakege.Seats can be replaced after abrasive wear.


● The body has the reinforcing inside and outside to increase strength.


● The top shaft has the pushing bearing to reduce torque.






Downloads
  • BS Big Size NRS Metal Seated Gate Valve CZ0078 2025-06-27
